1. The diesel engine equipped is made of domestic or imported high-quality products. It has the characteristics of good starting characteristics, strong overload capability, compact structure, convenient maintenance, simple use and high automation. It is an advanced and reliable fire-fighting equipment.
2. XBC-D Diesel engine fire pump is powered by X6135, 12V135, 4102, 4105, 6102 series diesel engines. The diesel engine (with clutch) is connected with fire pump through high-elastic coupling to form a fire pump set. The set also includes diesel tank, radiator tank, fan, control panel (for automatic unit) and other components.
3. When the set is automatically controlled, the automatic control cabinet (programmable) of the split diesel engine realizes the automatic start, input and automatic switching of the system (the electric pump unit is switched to the diesel pump unit or the diesel pump unit is switched to another unit), automatic protection (diesel overspeed, low oil pressure, high water temperature, three start failures, low oil level, low battery voltage, etc.), and can also interface with the user fire center or automatic fire alarm device, realize remote monitoring.
4. In order to ensure the normal operation of the unit under 5 °C environment, the unit can be equipped with AC220V cooling water preheating heating device.
5. XBC emergency mobile pump truck can be combined with electric pump group and jockey pump to form an automatic fire water supply system.
6. The water intake mode of XBC emergency mobile pump truck has two types: self-irrigation and suction. According to the requirements of fire protection regulations, it is generally self-irrigating water diversion. If the user needs to suck in the water inlet system, special instructions are required for the company to provide an automatic vacuum water guiding device, but the size of the pump unit has some changes.
7. The electric pump is the main fire pump, which can be automatically started according to the fire situation;
8. Equipped with jockey pump;
9. The diesel engine pump is a standby fire pump, and the fire is automatically started without power supply;
10. The diesel engine starts when the electric pump fails;

Characteristics:
Emergency, efficient, flexible and reliable
Rescue with the fastest speed, the first time to lift the crisis
One choice, lifetime benefit

Working conditions:
The mobile diesel engine pump is flexible and maneuverable; the equipment is integrated with driving power and can be used for emergency rescue in no power areas. When the equipment is on the scene, use the control system installed to start the engine to drive the pump to pump the fluid, which is convenient and quick. Equipped with a lighting system to accommodate night work.

Equipment structure:

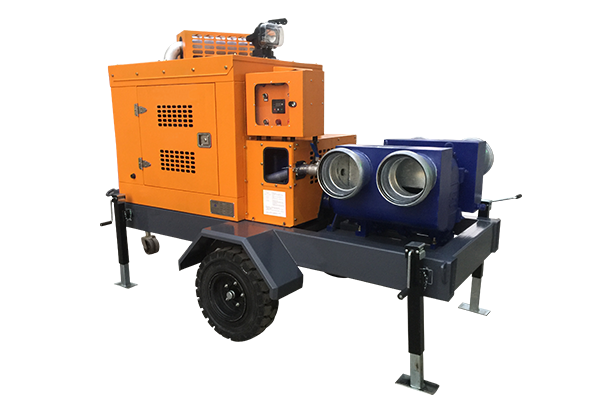

The complete set of XBC emergency mobile pump trucks includes: pumps, diesel engines, fuel tanks, water tanks, batteries, control cabinets, two-wheel support, trailers and brakes.

Lĩnh vực áp dụng:
1.Khu vực không có trạm bơm cố định và không có nguồn điện;
2.Chống lũ thoát ngập đột xuất;
3.Ứng cứu chống hạn
4.Tưới nước nông nghiệp, chăn nuôi thủy sản;
5.Các trường hợp hút nước tạm thời;
6.Hút nước giếng kín;
7.Thoát nước công nghiệp, đô thị.
Điều kiện sử dụng:
1.Nhiệt độ môi trường ≤50℃, nhiệt độ chất môi giới ≤100℃, thích hợp sử dụng ngoài trời.
2.Trị số PH của chất môi giới, chất liệu gang đúc là 6～9, chất liệu 304 là 2～14.
3.Tỷ trọng chất môi giới không vượt quá 1050kg/m3.
4.Chiều dài ống hút vào ≤16 mét, chiều cao tự hút ≤9 mét.
Phạm vi tính năng:
Lưu lượng 300～3500 m3/giờ, chiều cao áp lực 5～200 mét, công suất 30～1000kW.
Ý nghĩa của ký hiệu:
MPC- FPDR /2F-100ZWC100-30-Q480
MPC- xe bơm di động
FPDR-ứng cứu chống lũ chống hạn
2F -2 bánh xe hoặc 4F-4 bánh xe
100- đường kính ra nước, 100mm/1 cái
100- lưu lượng, 100m3/h
30- chiều cao áp lực, 30m
Q480/29- ký hiệu máy diesel, thông số kỹ thuật 29kW:
